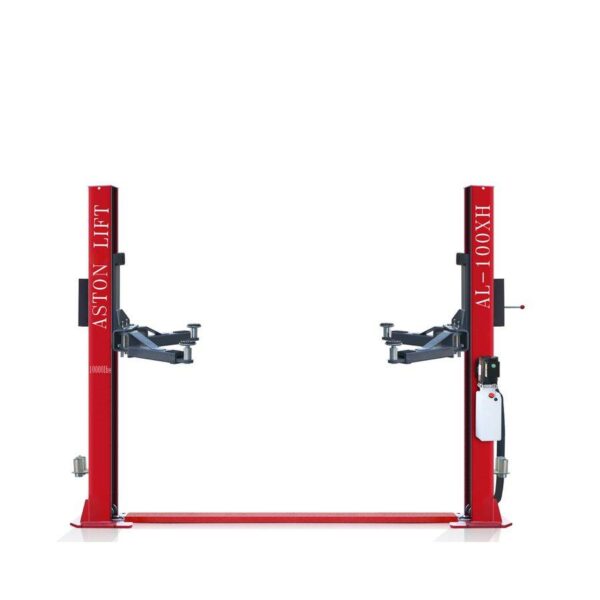

Aston® Heavy Duty 10,000 lbs 2 Post Auto Lift Base Plate – Model AL-100XH

The Aston® AL-100XH is a heavy-duty 10,000 lbs 2-post auto lift designed to meet the demands of professional and high-performance garages. This model boasts a maximum lift height of 72 inches and a lifting capacity of 10,000 lbs. Built for durability and efficiency, it features advanced safety mechanisms, including a single point safety lock release and automatic arm lock restraints, ensuring safe and secure operation. The package includes anchor bolts and mounting hardware for easy installation.

Features

• 10,000 lbs Capacity
• Max Lift Height: 72“ (1830mm)
• Minimum Pad Height: 4.33“ (110mm)
• Adjustable Lifting Time: 45-60 seconds
• Adjustable Lowering Time: 30 seconds
• 220V 1-Phase 3HP Motor
• Voltage: 220V, 1ph
• Noise Level: <70db
• Anchor Bolts and Mounting Hardware Included
• Heavy Duty 5/16″ Diameter Cable for Increased Durability
• Ultra High Molecular Self Lubricating Nylon Slider for Smooth Operation
• Stiffened Base Plate with 5/8″ Thickness
• Relief Valve Built-in to Prevent Overloading

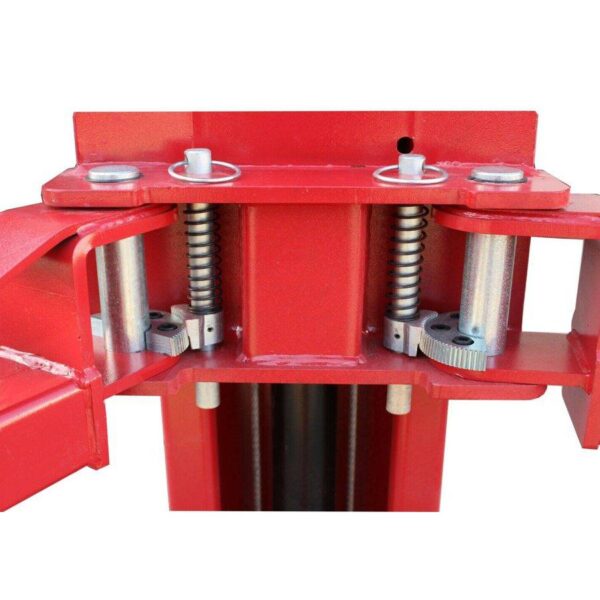

• Automatic Arm Lock Restraints
• Door Guards Protection Rubber

Specifications
