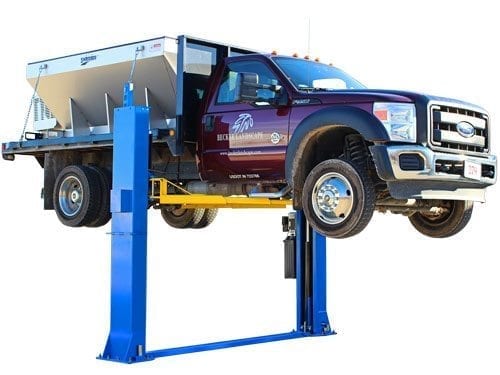

Atlas BP12000X 12,000 lb Commercial Grade Baseplate Lift
$1,735.50
The Atlas BP12000X 12,000 lb Commercial Grade Baseplate Lift is a high-quality lifting solution designed for durability and performance. Perfect for professional automotive workshops and home garages.
Did you like this product? Add to favorites now and follow the product.
Description
Atlas® BP12000X Commercial Grade Heavy-Duty 2-Post Lift
The Atlas® BP12000X is a heavy-duty, commercial-grade 2-post baseplate lift with a 12,000 lb. capacity, designed for garages that need to lift heavier vehicles but have limited ceiling height. Featuring oversized columns, symmetric three-stage arms, and a single-point lock release, this lift is perfect for commercial applications. Its adjustable width settings accommodate wider trucks or trailers, and its robust construction ensures reliable performance for lifting heavy vehicles.
Features
- 12,000 lb. Capacity
- Heavy Duty, Commercial Grade Construction
- Baseplate, Open-Top Style Design
- Overall Height: 122 1/2″ (10′ 2 1/2″)
- Adjustable Width for Wider Vehicles
- 3-Stage Symmetric Arms
- Automatic Arm Restraints
- Single-Point Lock Release
- Rubber Guards on Carriages
- Dual Hydraulic Chain-Over Cylinders
- Powder Coat Finish
- Free 12-Piece Truck Adapter Set
- Mounting Hardware Included
- Shipping Weight: 2,130 lbs.
- 5-Year Structural Warranty & 2-Year Hydraulic Warranty (Parts Only)
Specifications
| Specification | Details |
|---|---|
| Capacity | 12,000 lbs |
| Overall Height | 122 1/2″ (10′ 2 1/2″) |
| Overall Floor Width | 149 3/8″ (12′ 5 3/8″) or 154 1/2″ (12′ 10 1/2″) |
| Outside Column to Outside Column | 135 7/8″ (11′ 3 7/8″) or 141 1/4″ (11′ 9 1/4″) |
| Maximum Lift Height (Without Adapters) | 77 1/2″ |
| Maximum Lift Height (With Adapters) | 88 1/2″ |
| Minimum Arm Height | 4″ |
| Inside Column | 118 1/8″ (9′ 10 1/8″) or 123 1/2″ (10′ 3 1/2″) |
| Drive Thru | 103 5/8″ (8′ 7 5/8″) or 109″ (9′ 1″) |
| Column Size | 8 3/4″ x 14″ |
| Column Thickness of Steel | 6mm |
| Base of Lift | 18 1/2″ x 21 1/2″ |
| Motor/Electrical Requirement | 220V Single Phase (30 Amp Breaker Recommended) |
| Oil Requirement | 3-5 Gallons AW32/AW46 (Not Included) |
| Shipping Weight | 2,130 lbs |
| Adapter Heights | 4 Each: 2″, 3″, 6″ |
| Arm Hole/Adapter Peg Size | 1.5″ |
| Concrete Requirement | Minimum 6″ Thick with 3000 PSI Rating |
