BENDPAK HDS-27X 27,000-LB. CAPACITY ALI CERTIFIED FOUR-POST EXTENDED LENGTH TRUCK LIFT
$7,893.60
The BENDPAK HDS-27X 27,000-LB. CAPACITY ALI CERTIFIED FOUR-POST EXTENDED LENGTH TRUCK LIFT is a high-quality lifting solution designed for durability and performance. Perfect for professional automotive workshops and home garages.
Did you like this product? Add to favorites now and follow the product.
Description

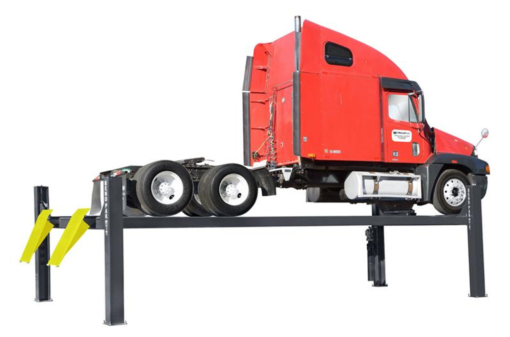

BendPak HDS-27X Four-Post Lift
The BendPak HDS-27X four-post lift is designed for heavy-duty commercial applications, including semi-trucks, stretch limos, city buses, and other super-duty vehicles. With a 27,000-lb. lifting capacity and extended 309″ runways, this lift is perfect for handling vehicles with massive proportions. Its robust construction and advanced features make it a reliable choice for commercial fleet maintenance and industrial applications.
Features
- Extended 309″ runways for handling long-wheelbase vehicles like semi-trucks and buses.
- Dual-hub cable sheaves with 12” diameter sheaves and 4” diameter axles for reduced wear and extended lifespan.
- Large 12″ x 12″ base plates for maximum structural integrity.
- Spring-loaded safety locks for automatic engagement during lift operation.
- Secondary lock system for added safety in case of cable failure.
- Rolling bridge jacks (optional) for raising wheels above the runways, ideal for wheel and brake service.
- Integrated flow restrictor for safe, controlled descent even in rare hydraulic hose failures.
- Maintenance-free electric-hydraulic power system for reliable operation.
- Non-skid runways for secure tire grip in all conditions.
- Fully enclosed lifting cables, airlines, and safety latches for protection against wear and debris.
- Adjustable height locking positions for versatile vehicle support.
- Conveniently positioned operator controls for ease of use.
Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 27,000 lbs. (12,247 kg) |
| Max Capacity / Front Axle | 13,500 lbs. (6,123 kg) |
| Max Capacity / Rear Axle | 13,500 lbs. (6,123 kg) |
| Min. Runway Height | 8.5″ (216 mm) |
| Max. Rise | 60″ (1,524 mm) |
| Max. Lifting Height | 68.5″ (1,740 mm) |
| Time to Full Rise | 75 seconds |
| Overall Width | 154″ (3,912 mm) |
| Outside Length | 317″ (8,052 mm) |
| Overall Length | 357″ (9,068 mm) |
| Height of Columns | 93″ (2,362 mm) |
| Width Between Columns | 134″ (3,404 mm) |
| Drive-Thru Clearance | 109″ (2,769 mm) |
| Runway Width | 22″ (559 mm) |
| Length of Runways | 309″ (7,849 mm) |
| Width Between Runways | 38″ (965 mm) or 56″ (1,422 mm) |
| Runway Centerline | 60″ (1,524 mm) or 78″ (1,981 mm) |
| Outside Edge of Runways | 82″ (2,083 mm) or 100″ (2,540 mm) |
| Minimum Wheelbase (Rated Capacity) | 230″ (5,842 mm) |
| Locking Positions | 9 |
| Lock Spacing | Every 6″ (152 mm) |
| Motor | 220 VAC / 60 Hz / 1 Ph |
| Shipping Weight | 6,944 lbs. (3,149 kg) |
| Shipping Dimensions | 265” x 27” x 36” (6,731 mm x 685 mm x 914 mm) |
