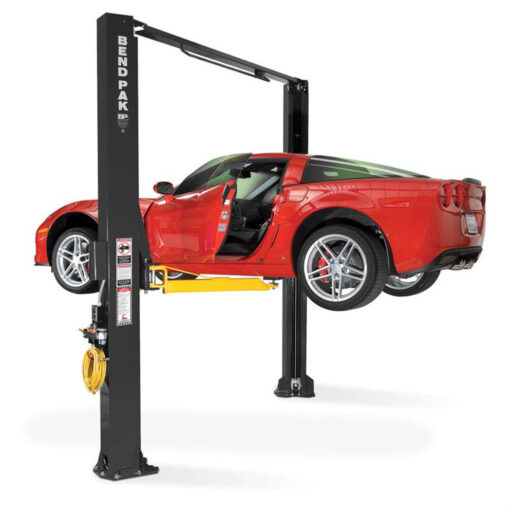

XPR-10AS-168 Two-Post Car Lift

The powerful and secure XPR-10AS-168 is an incredibly rapid two‐post lift with a robust menu of features to increase efficiency and productivity. Extended height columns provide added overhead clearance, and an adjustable width design allows you to choose the best setting for your specific space or vehicle lifting requirements. This true asymmetric lift features 30° rotated columns for added door-opening clearance and interior car access. The exclusive Tru-Metric carriage and arm design gives users the ability to load vehicles either symmetrically or asymmetrically.

Features

• 10,000-lb. lifting capacity
• Bolt-on 24″ column extensions for added overhead clearance
• Expandable top beam for wide or narrow drive-thru configuration
• Padded overhead safety shutoff bar
• Exclusive Tru-Metric arm design for versatile positioning
• 30° rotated single-piece columns
• Single-point safety release
• Drop-end arms for lower pad height
• Dual hydraulic direct-drive cylinders
• Over-sized 53″ tall carriage for superior strength
• Electric/hydraulic power system
• Large, 17″ x 19″ A36 steel base plate
• Self-lubricating dura-glide UHMW polyethylene bearing system
• Safety locks in each column spaced every 3″
• Automatic arm restraints
• Heavy-duty 1/2″ aircraft-quality equalizer cables
• Oversized cable sheave diameter reduces cable fatigue
• 4-piece 63mm stackable adapter set included
• Triple-telescoping arm design
• Versatile drop-in contact pads with stackable adapters
• ALI approved
