DANNMAR D4-9 PACKAGE 9,000-LBS. CAPACITY ALI CERTIFIED FOUR-POST LIFT PACKAGE
$2,369.78
The DANNMAR D4-9 PACKAGE 9,000-LBS. CAPACITY ALI CERTIFIED FOUR-POST LIFT PACKAGE is a high-quality lifting solution designed for durability and performance. Perfect for professional automotive workshops and home garages.
Did you like this product? Add to favorites now and follow the product.
Description

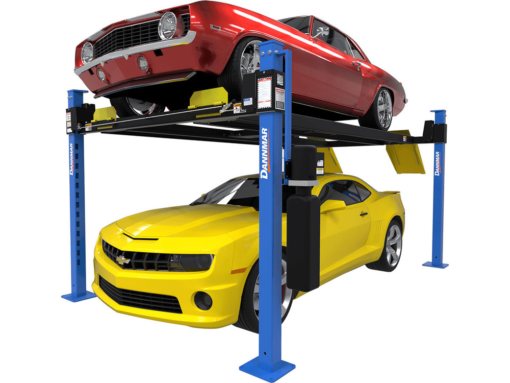

Dannmar D4-9 Four-Post Lift
The Dannmar D4-9 four-post lift is built with welded-steel construction and a proven design that ensures strength, safety, and long-lasting durability. With a 9,000 lb. lifting capacity, this lift handles heavy vehicles while providing quick lifting speed for efficient workflow.
One of the key features of the D4-9 is its ability to store a fully raised vehicle, creating additional space below for repairs or storage. This dual-purpose design optimizes space usage in home garages and professional workshops. The lift also includes a mobile caster kit, lightweight yet tough polyethylene drip trays, a sliding jack tray, removable aluminum approach ramps, hardened steel tire stops, and hard-rubber wheel chocks.
Features
- Can be fastened to the floor or used as a free-standing lift
- Includes a mobile caster kit, drip trays, jack tray, aluminum approach ramps, steel tire stops, and rubber wheel chocks
- Constructed from structural 4.75” x 4.75” welded steel tubing
- Columns feature 12” x 12” baseplates for stability
- Manual dead-bolt locks are machined directly into the boxed-steel columns
- 3/4″ thick steel safety locks engage automatically
- 13 locking positions, spaced every 4 inches
- Secondary slack-cable lock system for backup safety
- Exterior steel sleeves ensure secure column contact
- Welded-steel runways with utility rail for accessories
- Hydraulic flow restriction prevents sudden free-fall
- Oversized baseplates reduce lateral movement
- Low-profile runways at only 5″ high for low-clearance vehicles
- Hardened steel safety lock linkages ensure smooth operation
- Stainless steel lifting cables rated to handle over 14,000 lbs. each
- Pre-assembled cables for easy installation
- 36″ aluminum approach ramps reinforced to prevent flexing
- Pull-out tire stops for drive-through capability
- Optional full-length aluminum platforms available for additional storage
Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 9,000 lbs. (4,082 kg) |
| Min. Runway Height | 5” (127 mm) |
| Max. Rise | 70” (1,778 mm) |
| Max. Lifting Height | 75” (1,905 mm) |
| Height of Columns | 89” (2,261 mm) |
| Drive-Thru Clearance | 86” (2,184 mm) |
| Overall Width | 114.5” (2,908 mm) |
| Width Between Columns | 98” (2,489 mm) |
| Overall Length | 203” (5,156 mm) |
| Min. Wheelbase @ Rated Capacity | 115” (2,921 mm) |
| Min. Wheelbase @ 75% Capacity | 100” (2,540 mm) |
| Min. Wheelbase @ 50% Capacity | 85” (2,159 mm) |
| Min. Wheelbase @ 25% Capacity | 70” (1,778 mm) |
| Locking Positions | 13 (spaced every 4” / 102 mm) |
| Time to Full Rise | 60 seconds |
| Motor | 110V / 208-230V, 50-60Hz, 1Ph |
Note: The Dannmar D4-9 is a high-quality four-post lift ideal for vehicle storage, repair work, and garage optimization. Designed with durability and convenience in mind, it’s an excellent addition to any workspace.
