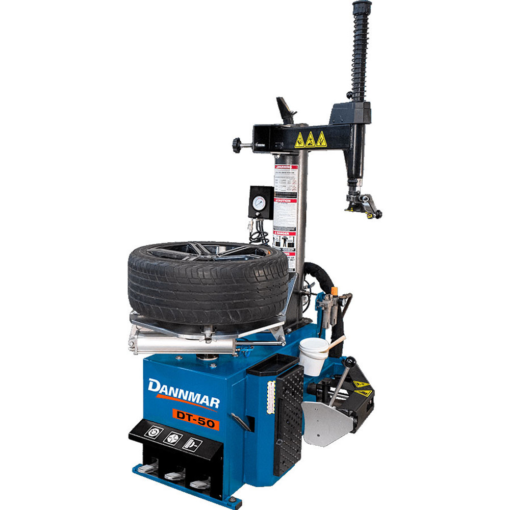

Dannmar DT-50 Swing-Arm Tire Changer

The Dannmar DT-50 is an affordable and high-performance swing-arm tire changer, designed for both speed and ease-of-use. It features upfront controls that are logically arranged, ensuring seamless tire service operations. With its rigid hexagonal vertical shaft and hardened-steel horizontal outrigger support arm, the DT-50 minimizes flex, reducing the risk of wheel damage.

Key Features

• High-torque electric turntable for faster operation and easier tire swaps
• Enhanced bead breaker blade with rubber bump-stop for smooth arm return
• Sealed electrical components to protect against dust and contamination
• High-pressure polyurethane pneumatic tubing for improved airflow
• Upfront controls for ergonomic operation
• Aluminum pneumatic cylinders with internal end-of-stroke cushions for protection
• Alloy steel mount and demount head with a micro-smooth surface
• 45mm spring-assist hexagonal vertical tool shaft with a rigid support arm
• Pistol-type tire inflator with hands-free clip-on valve chuck

Additional Features

• Swing-arm tower design
• Alloy steel mount and demount head
• Wheel clamping method: 4 clamps (internal rim clamping)
• Capacity: 12” – 26” (305 mm – 660 mm)
• Maintenance-free gearbox
• Inflation gauge with integrated air dump valve
• Tool tray/storage compartment
• Oiler/lubricator and air regulator
• Inflation restraint for safety
• Forged-steel foot pedals

Specifications

Note: The Dannmar DT-50 Swing-Arm Tire Changer is an ideal choice for professional auto shops and on-the-go service providers, offering a perfect blend of durability, efficiency, and precision.
