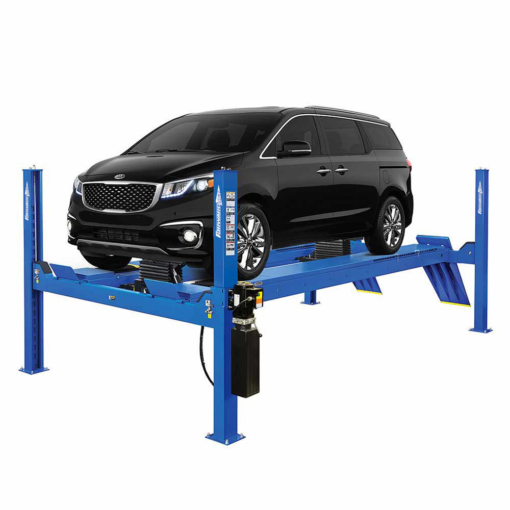

FORWARD LIFT CRA14-EL 14,000 LB. ALI CERTIFIED ALIGNMENT FOUR-POST LIFT – 215” MAX WHEELBASE
$8,699.70
The FORWARD LIFT CRA14-EL 14,000 LB. ALI CERTIFIED ALIGNMENT FOUR-POST LIFT – 215” MAX WHEELBASE is a high-quality lifting solution designed for durability and performance. Perfect for professional automotive workshops and home garages.
Did you like this product? Add to favorites now and follow the product.
Description
CRA14 Alignment Four-Post Lift
The CRA14 is a high-capacity 14,000 lbs. four-post alignment lift designed for efficiency and precision. Its cable and pulley system is concealed under the runways for a **clean finish and easy maintenance**. This lift is built with **durability and precision**, featuring a **powder-coated hammer tone paint finish** for longevity.
Key Features
- 14,000 lbs. lifting capacity for heavy-duty vehicle alignment.
- Multi-position lock component ensures level alignment at any lock position.
- Self-chocking approach ramps and wheel chocks included for added safety.
- Single-point latch release system for smooth operation.
- Internal airline system and rear wheel slip plates included.
- One-piece formed runways with rolling jack channels for stability.
Alignment-Ready Package
The CRA14 comes fully equipped for precision alignment services, featuring:
- Two 7,000 lbs. rolling jacks for lifting convenience.
- Two carbon steel front turning radius plates for precise wheel positioning.
- Internal airline system for hassle-free operation.
- Rear wheel slip plates for accurate alignment adjustments.
- FLR (Filter, Lubricator, Regulator) included for air system maintenance.
Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 14,000 lbs. (6350 kg) |
| Max Wheelbase | 215″ (5460 mm) |
| Max Two-Wheel Alignment | 199-1/4″ (5060 mm) |
| Max Four-Wheel Alignment | 172-1/4″ (4375 mm) |
| Min Four-Wheel Alignment | 88″ (2235 mm) |
| Rise | 80-3/4″ (2000 mm) |
| Length Overall | 283″ (7188 mm) |
| Width Overall | 10′ 11-3/4″ (3346 mm) |
| Inside Columns | 116-1/4″ (2953 mm) |
| Between Front and Rear Columns | 228-1/4″ (4959 mm) |
| Height of Columns | 7′ 6-1/2″ (2281 mm) |
| Runway Width | 20″ (508 mm) |
| Runway Height | 9″ (228 mm) |
| Width Between Runways | 43″ (1092 mm) or 46″ (1168 mm) |
| Time to Full Rise | 72 seconds |
| Voltage (Single Phase) | 208v-230v |
| Motor | 2HP |
| Minimum Bay Size | 15′ x 28′ (4572 x 8534 mm) |
The CRA14 Alignment Four-Post Lift is a must-have for professional automotive shops, ensuring **efficient, precise, and safe alignment services**.
Upgrade your shop today!
