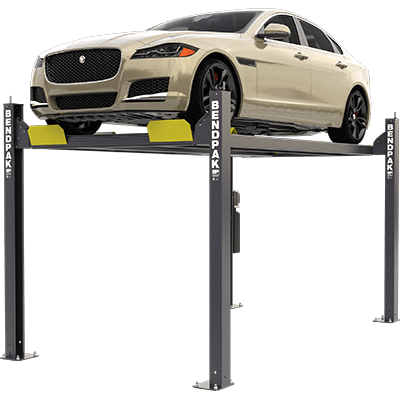

HD-7W (5175120) 7,000-lb. Capacity / Wide Car Lift / High Rise
$1,605.00
The HD-7W (5175120) 7,000-lb. Capacity / Wide Car Lift / High Rise is a high-quality lifting solution designed for durability and performance. Perfect for professional automotive workshops and home garages.
Did you like this product? Add to favorites now and follow the product.
Description
Heavy-Duty 7,000 LB 2-Post Car Lift
This heavy-duty 2-post car lift offers a 7,000-pound lifting capacity, making it ideal for professional automotive service and repair. It features a wide drive-thru clearance, tall lifting height, and short runways for versatile use. The lift includes a rail-kit for optional accessories, a single hydraulic cylinder mounted underneath the runway, and internal anti-sway slider blocks for enhanced stability. With oversized self-lubricating cable rollers, rugged 1.25″ roller axles, and a push-button pneumatic safety release, this lift ensures safe and efficient operation. The durable design includes multi-position safety locks, adjustable lock ladders, and ramps with a non-skid surface for added safety.
Features
- 7,000-lb. maximum lifting capacity
- Wide drive-thru with tall lifting height and short runways
- Runways include rail-kit for optional accessories
- Electric/hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers
- Heavy-duty 3/8″ aircraft cable
- Rugged 1.25″ roller axles
- Multi-position safety locks in each column
- Adjustable lock ladders
- Ramps feature non-skid surface
- Push-button pneumatic safety release
- Optional 4,500-lb. capacity rolling jack available (Model RJ-45)
Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 7,000 lbs. (3,175 kg) |
| Max Capacity / Front Axle | 3,500 lbs. (1,588 kg) |
| Max Capacity / Rear Axle | 3,500 lbs. (1,588 kg) |
| Min. Runway Height | 4.5″ (114 mm) |
| Max. Rise | 82″ (2,083 mm) |
| Max. Lifting Height | 86.5″ (2,197 mm) |
| Time to Full Rise | 35 seconds |
| Overall Width | 110.25″ (2,800 mm) |
| Outside Length | 174″ (4,420 mm) |
| Overall Length | 200″ (5,080 mm) |
| Height of Columns | 100″ (2,540 mm) |
| Width Between Columns | 100.25″ (2,546 mm) |
| Drive-Thru Clearance | 86.5″ (2,197 mm) |
| Runway Width | 19″ (483 mm) |
| Length of Runways | 164″ (4,166 mm) |
| Width Between Runways | 37.5″ (953 mm) or 44.375″ (1,127 mm) |
| Runway Centerline | 56.5″ (1,435 mm) or 63.375″ (1,610 mm) |
| Outside Edge of Runways | 75.5″ (1,918 mm) or 82.375″ (2,092 mm) |
| Rated Capacity Wheelbase | 115″ (2,921 mm) |
| 75% Capacity Wheelbase | 100″ (2,540 mm) |
| 50% Capacity Wheelbase | 85″ (2,159 mm) |
| 25% Capacity Wheelbase | 70″ (1,778 mm) |
| Locking Positions | 15 |
| Lock Spacing | Every 4″ (102 mm) |
| Motor | 220 VAC / 60 Hz / 1 Ph |
| Noise Level | 45 dB |
| Shipping Weight | 1,734 lbs. (786 kg) |
| Shipping Dimensions | 164” x 22” x 35” (4,165 mm x 559 mm x 889 mm) |
