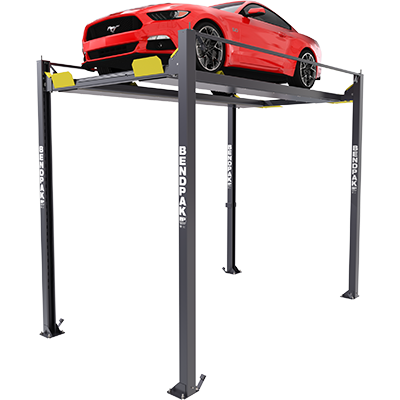

HD-7PXW (5175516) 7,000-lb. Capacity / Super-Tall Rise / Four-Post Lift / Vehicle Display Platform
$2,416.50
The HD-7PXW (5175516) 7,000-lb. Capacity / Super-Tall Rise / Four-Post Lift / Vehicle Display Platform is a high-quality lifting solution designed for durability and performance. Perfect for professional automotive workshops and home garages.
Did you like this product? Add to favorites now and follow the product.
Description
Super Tall 7,000 LB 2-Post Car Lift
This super tall 2-post car lift offers a 7,000-pound lifting capacity and an impressive 12-foot lifting height, making it ideal for lifting larger vehicles and trucks. It features an electric/hydraulic power system, a single hydraulic cylinder mounted underneath the runway, and internal anti-sway slider blocks for enhanced stability. With oversized self-lubricating cable rollers, rugged 1.25″ roller axles, and a push-button pneumatic safety release, this lift ensures safe and efficient operation. The durable design includes multi-position safety locks, adjustable lock ladders, and ramps with a non-skid surface for added safety.
Features
- 7,000-lb. maximum lifting capacity
- Super tall rise delivers 12-feet of lifting height
- Electric/hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers
- Heavy-duty 3/8″ aircraft cable
- Rugged 1.25″ roller axles
- Multi-position safety locks in each column
- Adjustable lock ladders
- Ramps feature non-skid surface
- Push-button pneumatic safety release
Specifications
| Specification | Details |
|---|---|
| Lifting Capacity | 7,000 lbs. (3,175 kg) |
| Max Capacity / Front Axle | 3,500 lbs. (1,588 kg) |
| Max Capacity / Rear Axle | 3,500 lbs. (1,588 kg) |
| Min. Runway Height | 4.5″ (114 mm) |
| Max. Rise | 140″ (3,556 mm) |
| Max. Lifting Height | 145″ (3,683 mm) |
| Time to Full Rise | 60 seconds |
| Overall Width | 110.25″ (2,800 mm) |
| Outside Length | 198″ (5,029 mm) |
| Overall Length | 224.5″ (5,702 mm) |
| Height of Columns | 158″ (4,013 mm) |
| Width Between Columns | 100″ (2,540 mm) |
| Drive-Thru Clearance | 86.5″ (2,197 mm) |
| Runway Width | 19″ (483 mm) |
| Length of Runways | 188″ (4,775 mm) |
| Width Between Runways | 37.5″ (953 mm) or 44.5″ (1,130 mm) |
| Runway Centerline | 56.5″ (1,435 mm) or 63.5″ (1,613 mm) |
| Outside Edge of Runways | 75.5″ (1,918 mm) or 82.5″ (2,096 mm) |
| Rated Capacity Wheelbase | 135″ (3,429 mm) |
| 75% Capacity Wheelbase | 115″ (2,921 mm) |
| 50% Capacity Wheelbase | 95″ (2,413 mm) |
| 25% Capacity Wheelbase | 80″ (2,032 mm) |
| Locking Positions | 30 |
| Lock Spacing | Every 4″ (102 mm) |
| Motor | 208-230 VAC / 50-60 Hz / 1 Ph |
| Noise Level | 45 dB |
| Shipping Weight | 2,180 lbs. (988.8 kg) |
| Shipping Dimensions | 192” x 22” x 35” (4,876 mm x 558 mm x 889 mm) |
